D2 MILL 430 ON
Program
| INSERT | FACE MILL CUTTER RANGE | END MILL RANGE | MAXIMUM DEPTH OF CUT |
|---|---|---|---|
| ONMU 050508-M | Ø50, Ø63, Ø80, Ø100, Ø125 | Ø25, Ø32, Ø40 | 2 mm |
| ONMU 070608-M & ONMU 070608-ML | Ø63, Ø80, Ø100, Ø125, Ø160. | - | 4mm |

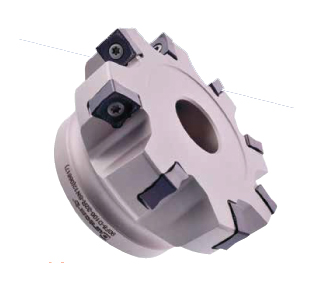

D2 MILL 900 SN
Program
| INSERT | FACE MILL CUTTER RANGE | Maximum DoC |
|---|---|---|
| SNGU120508-M | Ø50, Ø63, Ø80, Ø100, Ø125 | 6mm |
| SNMU100408-M | Ø40, Ø50, Ø63 | 5mm |
D2 MILL 450 SN
Program
| INSERT | FACE MILL CUTTER RANGE | MAXIMUM DEPTH OF CUT |
|---|---|---|
| SNGU 1205-XTN | Ø50, Ø63, Ø80 Ø100, Ø125 | 6 mm |
| SNKU 1205 XTN | Ø50, Ø63, Ø80, Ø100, Ø125 | 6mm |
D-MILL 450 SD
Program
| INSERT | FACE MILL CUTTER RANGE | Maximum DoC |
|---|---|---|
| SDKT 1305 XTR-M | Ø50, Ø63, Ø80, Ø100, Ø125 | 4mm |

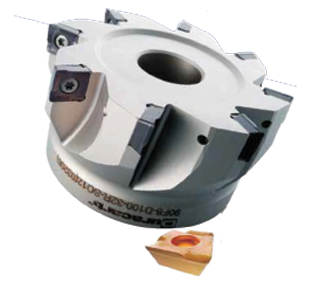

D-MILL 900 SO
Program
| INSERT | FACE MILL CUTTER RANGE | MAXIMUM DEPTH OF CUT |
|---|---|---|
| SOMX 120508 PEER-DM SOMX 120508 PEER-A |
Ø50, Ø63, Ø80, Ø100, Ø125 | 7 mm |
D-MILL 90 0 TO
Program
| INSERT | FACE MILL CUTTER RANGE | END MILL RANGE | Maximum DoC |
|---|---|---|---|
| TOMX 100408PDTR-DM | Ø40, Ø50, Ø63, Ø80. | Ø20, Ø25, Ø32, Ø40 | 6mm |
D-MILL 900 AP
Program
| INSERT | FACE MILL CUTTER RANGE | END MILL RANGE | Maximum DoC |
|---|---|---|---|
| APKT 080308R APKT 080316R |
Ø16, Ø20, Ø25, Ø32. | 6.5mm | |
| APKT 160408 PSDR | Ø40, Ø50, Ø63, Ø80, Ø100. | Ø25, Ø32 | 13mm |
D-HIFEED
Program
| INSERT | FACE MILL CUTTER RANGE | END MILL RANGE | Maximum DoC |
|---|---|---|---|
| SDMT 1004 DR | Ø50, Ø52, Ø63 | Ø25, Ø32, Ø40 | 1.2mm |
D-MID-MOLD
Program
| INSERT | FACE MILL CUTTER RANGE | END MILL RANGE | Maximum DoC |
|---|---|---|---|
| RDMT 1003-DM RDMT 1003-DR |
- | Ø20, Ø25. | 5mm |
| RDMT 12T3-DM RDMT 12T3-DR |
Ø50, Ø52 | Ø32 | 6mm |

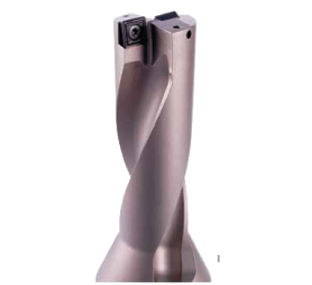

DEC DRILL
Program
| INSERT | FACE MILL CUTTER RANGE | END MILL RANGE | Maximum DoC |
|---|---|---|---|
| SPMX 06T204 MG | Ø15.5 TO Ø21.5 | 2,3 & 4 | Diametrical Increments of 0.5 mm |
| SPMX 070308 MG | Ø22 TO Ø27.5 | 2,3 & 4 | |
| SPMX 09T308 MG | Ø28 TO Ø33 | 2 & 3 | |
| SPMX 06T204 MG | Ø15.5 TO Ø21.5 | 2 & 3 | |
| SPMX 11T308 MG | Ø34 TO Ø41 | 2 & 3 | Diametrical Increments of 1 mm |

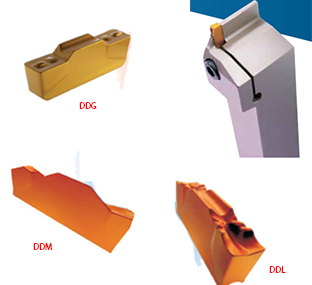

DDG / DDL / DDM
Program
| GROOVE WIDTH | HOLDER DESCRIPTIONS | GROOVE DEPTH | ||
|---|---|---|---|---|
| 2 | DCER/L 16T09-2 | DCER/L 20T09-2 | DCER/L 25T09-2 | 9 |
| 2 | DCER/L 16T16-2 | DCER/L 20T16-2 | DCER/L 25T16-2 | 16 |
| 3 | DCER/L 16T09-3 | DCER/L 20T09-3 | DCER/L 25T09-3 | 9 |
| 3 | DCER/L 16T16-3 | DCER/L 20T16-3 | DCER/L 25T16-3 | 16 |
| 4 | DCER/L 16T09-4 | DCER/L 20T09-4 | DCER/L 25T09-4 | 9 |
| 4 | DCER/L 16T16-4 | DCER/L 20T16-4 | DCER/L 25T16-4 | 16 |
| 5 | DCER/L 20T20-5 | DCER/L 25T20-5 | 20 | |
| SHANK 16X16 | SHANK 20X20 | SHANK 25X25 | ||
SMART TURN
Program
| PROGRAM: INSERTS: |
EXTERNAL HOLDERS: | INTERNAL HOLDERS: |
|---|---|---|
| CNMA 090412 | DCLNR/L 2020 K0904 | S16Q/S20Q SCLNR/L 0904-C |
| CNMG 090408* | DCLNR/L 2525 M0904 | S16Q/S20Q STJNR/L 1304-C |
| CNMG 090412* | WTJNR/L 2020 K1304-C | S16Q/S20Q STUNR/L 1304-C |
| TNMA 130408 | WTJNR/L 2525 K1304-C | |
| TNMG 130404* | ||
| TNMG 130408* | ||
| TNMG 130412* |
